Revenge from Mars
Mini-Saucer LED KitTM


(Click to enlarge)



Features of the RFM Mini-Saucer LED Kit

The RFM-LED Kit adds a set of animated LEDs to the miniature saucers on your Revenge from Mars pinball machine. The RFM-LED board can independently control each of the eight LEDs on both saucers.

The various patterns are stored in a 27c020 (2meg) EPROM image. The board will actually come with a 27c040 (4meg) EPROM chip, mainly because these are more common. I included jumpers on the board that will allow the owner to select between the two different sets of patterns stored on the 27c040 chip. The board can actually accept a 27c080 (8meg) EPROM chip, thus allowing for four selectable pattern sets ... but at this point, that setting is reserved for possible future expansion.


Animated GIF Samples

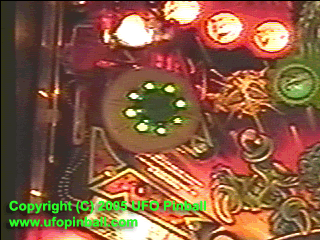

Sample pattern #1

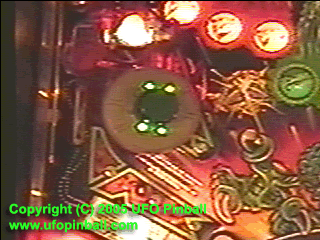

Sample pattern #2

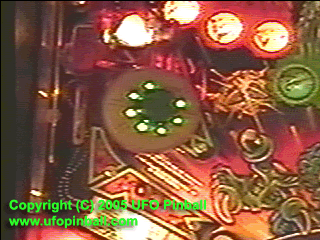

Sample pattern #3

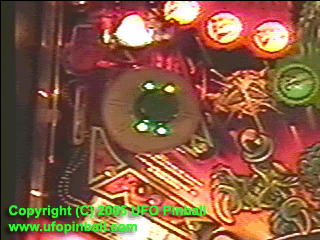

Sample pattern #4


Sample pattern #5


Sample pattern #6


Sample pattern #7


Sample pattern #8


Sample pattern #9

There are actually a couple dozen more patterns included with the kit ... however, most of these do not compress easily enough to make animated GIF samples. For similar reasons, I decided to just do a close-up image of the one saucer. Although it is not shown here ... to add some variety, some of the patterns run identically on both saucers, others run mirrored patterns, and a few run independent patterns on each saucer.



The RFM-LED Kit is very easy to install. The custom-made board is designed to fit in the spare PCI slot in your game's CPU box. The board draws its power from a spare hard drive power plug, not off the motherboard.


New RFM-LED Prototype Board (PCI)
(Click to enlarge)

The board also tracks the general playfield illumination, and turns off the saucers when the rest of the playfield is dark. This means the saucers will be OFF during modes like the "Hypno Beam". This was the most popular feature being asked for during the initial design.

In addition, the board tracks the center-ramp flasher, so the saucers will respond at the end of most modes, just before you deliver the final shot (ie: "Finish him!!") The AFM board had a similar feature when you made hits on the main saucer. The center ramp flasher is the only signal that behaves in a reasonably consistent manner.

The saucers will plug into the outer side of the metal bracket, via two phone plugs. The cords leading to the saucers feed through existing holes underneath the slingshots. Once fully installed, they are virtually undetectable.

The rest of the signals will be transmitted via two molex-type plugs that go into the Power Driver Board, located beneath the playfield (under the black plastic lid). Installation of the kit will require NO SOLDERING. The specific plugs are J107 and J110 ... both should be currently unused on "Revenge from Mars". I am told they are also unused on "Star Wars:Episode 1".


Revenge from Mars Power Driver Board
(Click to enlarge)

There are fewer saucers supported on this board, but there are now more expansion ports. Should someone (not necessarily me) decide to create a backbox toy, then we will still have the option to piggy-back onto the existing board circuitry. This board design can control up to 48 more individual LEDs.

At the time of this writing, the RFM-LED presale period is still running. Production for these boards will begin in early October, and are expected to ship starting around November 1st. I will post pictures of the production boards once they arrive.
