Revenge from Mars
Mini-Saucer LED KitTM
(Click to enlarge)
How to Install the RFM Mini-Saucer LED Kit
Chapter 4: Remounting the saucers back in the game
|
Once you have completed the LED installation, you can re-install the saucers into your game. Feed the phone plug end of the cords through the existing holes in the slingshot plastics, then through the existing holes in the playfield. Pull the cord nice and snug and mount the saucer with as little cord showing as possible.

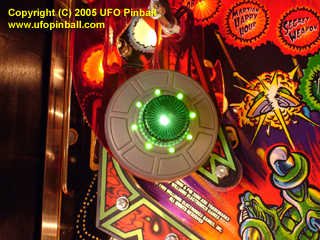

The left saucer (cord #1), installed (Click to enlarge)

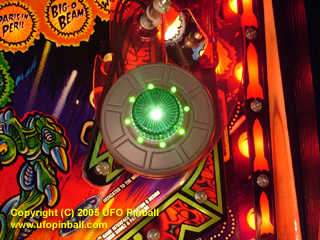

The right saucer (cord #2), installed (Click to enlarge) If you look at the pictures closely, you can still see a tiny bit of the saucer cord, just outside the saucer plastic nearest the slingshot lower corner nylon lock-nut. Chapter 1: Installing the board Chapter 2: Connecting the wire harness Chapter 3: Inserting the LEDs in the saucers Chapter 4: Remounting the saucers back in the game Chapter 5: Connecting the saucers to the board |
